Jetrite Process


JR Logo

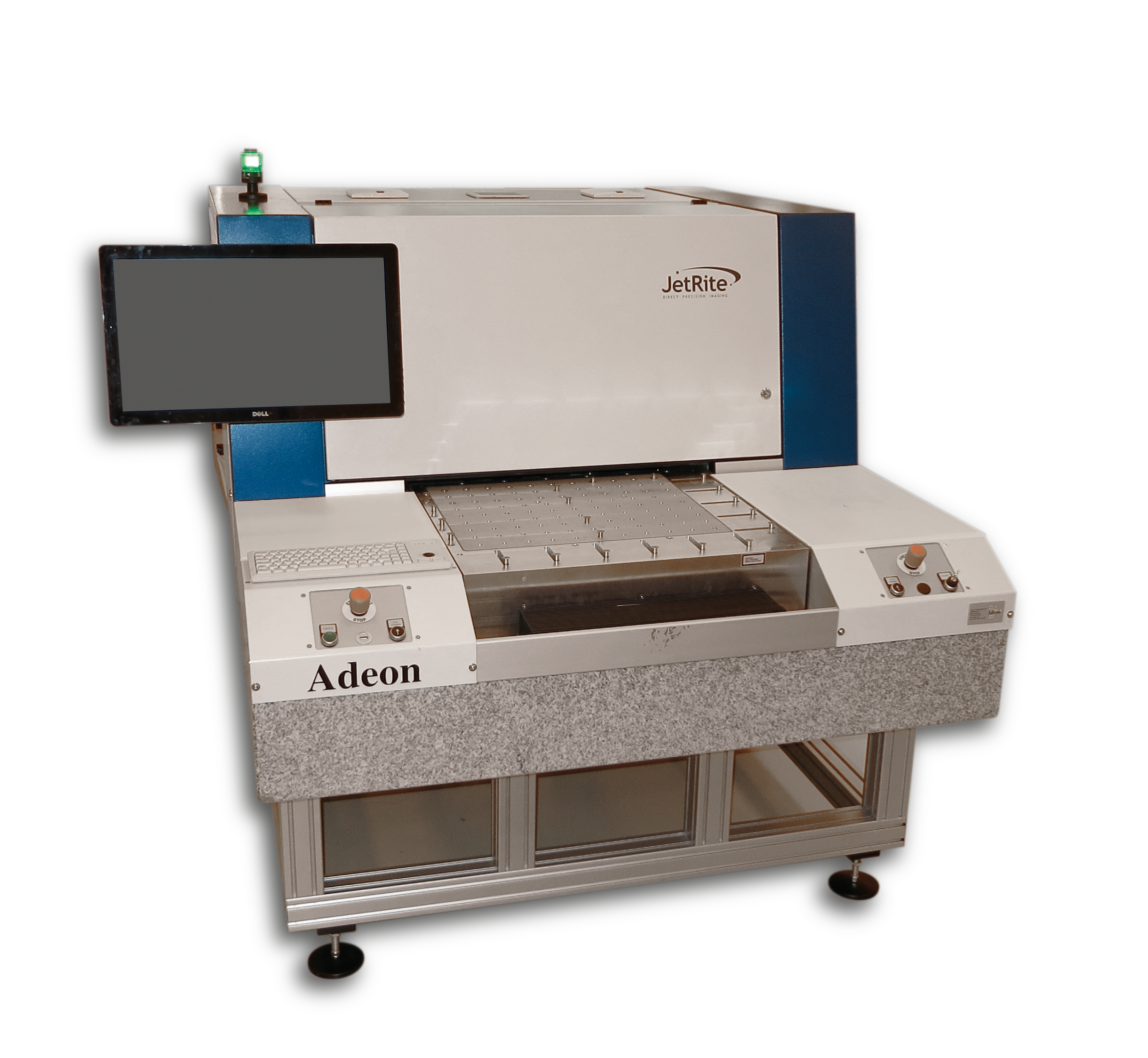

The Jetrite Legend Printing System eliminates the need for conventional processes as Screen-Printing and Photo-Lithographic processes. The conventional processes are extremely labor intense and require skilled operation. The Jetrite also eliminates the need for many expensive consumable materials such as Artwork plotting, developing, setting up screens, cleaning etc.

Adeon Jetrite 2017



















THE PROCESS

  • Before each printout the print heads get cleaned automatically to ensure stable printout results. Using 3 point alignment to compensate board translation, rotation and scaling.
  • Automatic Panel height measurement using a laser unit & Printhead height adjustment.
  • Automatic Alignment using customer defined fiducial positions, it is possible to define one set of standard fiducial positions per board size and side.
  • During actual printing Jetrite also creates:
    • Global logLogs general events (user log-in, configuration changes, error messages etc.). Beside the message text each log entry contains the event's timestamp and the  logged-in user.
    • Job logs. Additionally there exists a log for each single job, storing information about events related to this job.
    • Print protocol. The print protocol contains detailed information about each printout (timestamp, lot and board no., print settings, printing time etc.).
  • On The Fly Tack Curing by means of UVpattern-zoom.
  • Possible to print second (other) side immediately.



ADVANTAGES

  • From CAM (Gerber) to Print in <5 minutes
  • No waste of hazardous materials
  • Deskilled operation
  • Extremely economic use of Inks
  • Accurate automatic patter alignment to panel
  • Serialisation printing capabilities
  • Compact System
  • Reliable Printheads
  • Industrialised (proven) Agfa Ink
  • Maintenance Friendly
  • Lowest Cost of Operation



Information subject to change without notice!
